Under Sink Kit Twin Filter System

USD10
(Please note this unit needs to be assembled to your requirements. Please contact us with what you would require)

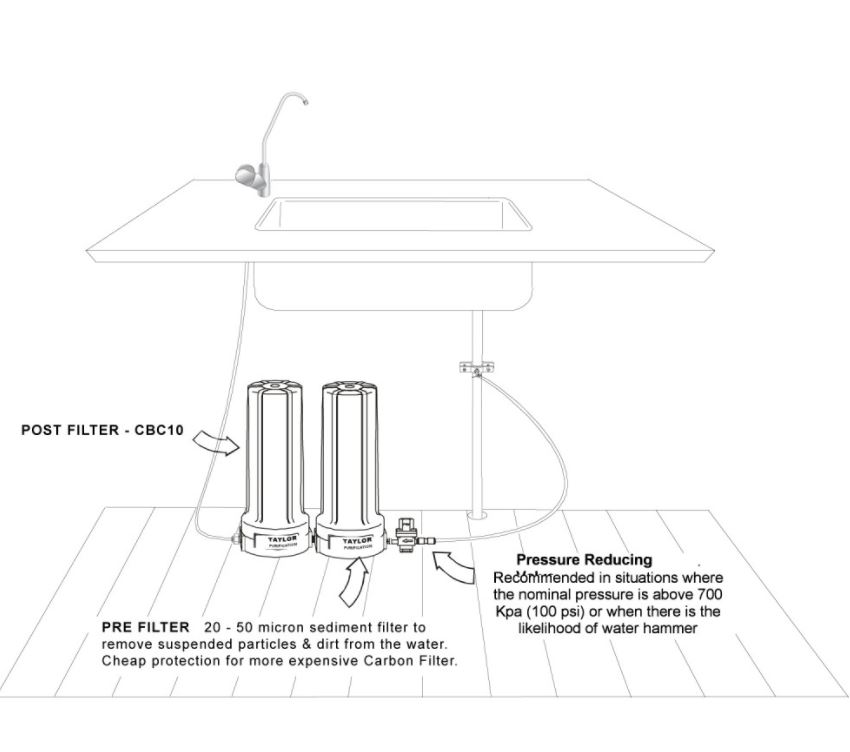

The Under sink twin sump unit comes with a pre filter to remove sand, silt, dirt and other sediments and the CBC carbon filter that will take care of reducing fine sediment, chlorine, taste and odour, protozoan cysts in residential and commercial drinking water. It has a nominal (85%) filtration rating of 0.5 micron and a 99% efficiency for the reduction of protozoan cysts.

Specifications:

* Normal operating maximum pressure : 900Kpa (125 psi)
* Normal maximum temperature : 50°C
* Max Flow rate : 28 lpm

Features:

This Undersink filter unit comes standard with these features and options:

* 2X Pentek 10" x 2.5" Filter Housing
* Filter Housing fittings: 1/4"
* Faucet (PLAT-S tap)
* Take off Valve (please see below & dropdown menu)
* Bracket
* Filter Options:
Option 1) CBC10 Carbon Filter & Nitrate Filter
Option 2) CBC10Carbon Filter & Pre Filter
Option 3) CBC10 Carbon Filter & Fluoride Filter
* Pressure Reducing Valve is not included but is recommended where water hammer is likely
* Spanner to be purchased additionally : SW1

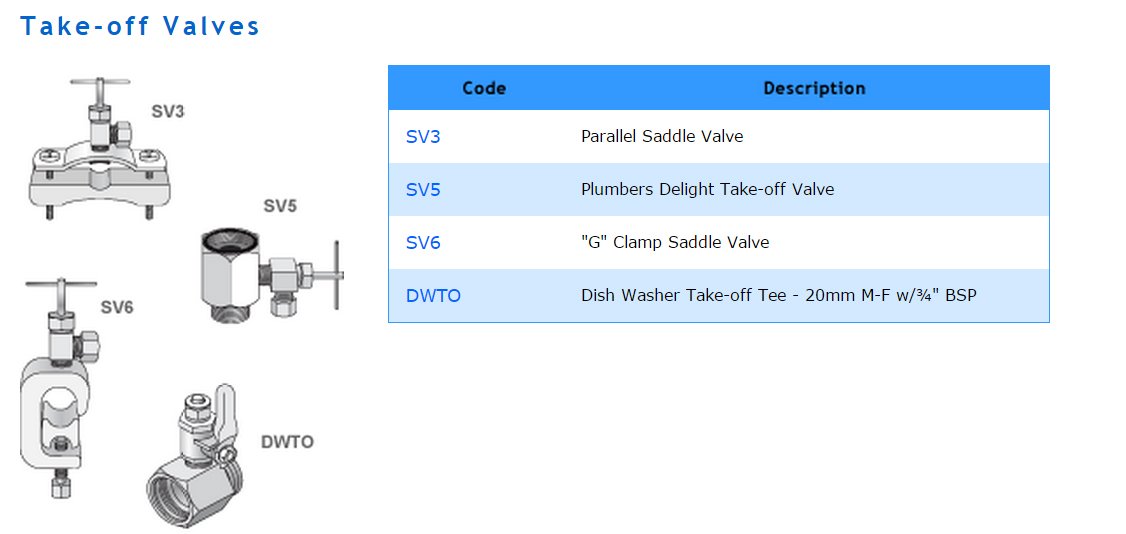

Take-off valve options:

* SV3 saddle valve 3 paralel (used with metal piping)
* SV6 sadle valve 6 G clamp (used for poly butylene)
* SV5 plumber delight take off valve (½" BSP)
* DWTO dish washer tap take off tee 20mm m with ¼" BSP
* Please see images for pictures of take off valves.

 User Manual
