Zenit- Bluebox 250L Sewer Pump Station With Accessories and Grinder pump options

Save 7%

Price:
Sale price$3,697.50 Regular price$3,972.20

Description

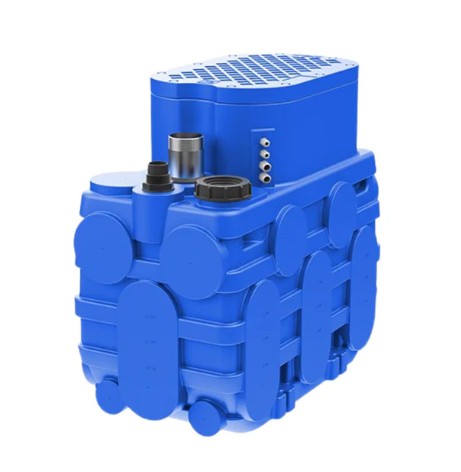

Zenit- Bluebox 250L Sewer Pump Station

With Accessories and Grinder pump options

The BLUEBOXDG is an automatic pump station for collecting and lifting raw sewage from commercial, civil and industrial applications where waste needs to be pumped from below the sewer.

Model Watts HP Max Flow Rate (lpm) Max Head (m) Outlet (mm)
GR-BLUEP100 750 1 240 17 40
GR-BLUEP150 1100 1.5 300 21 40
GRBLUEP200 1500 2 300 27 40

Specifications:

* Capacity 250 L
* 250 Litre Station Dimenions (mm) 660 x 900 x 500
* Number of pumps possible = 1
* Operation temperature 40°C (90°C short time)
* The Blue Box features guide rails, ball type non return valve options for a Zenit Pro Grinder pump
  (Please see drop down Box for 3 pump available models suitable for this station)

Features:

* Includes a 250 litre polyethylene chamber with 2"vertical outlet with built in air bleed, 2" ball type non return valve, 2" galvanised outlet pipework, gaskets and install accessories.
* 250 litre version for one pump
* Can be installed directly coupled or with coupling device
* Walk-over cover
* O-ring seal between tank and cover
* Simplified intake pipeline installation with seal
* Airtight cable gland seals
* Integral lifting handle
* Fitted for emergency emptying using a tap or auxiliary pump
* Patented cable gland allowing easy pump removal for any maintenance work

Included:

* Coupling foot with 2" vertical outlet and built in air bleed.2" ball valve type NRV.
* 2" Galv outlet pipework and gaskets and installation accessories.
* Cable gland, emergency draining connector, gasket kit for inlet pipes, 1 special support to reduce the float switch level, use and maintenance booklet.

(250 Litre chamber can be purchased with or without the pump)

Applications:

* Able to Handle liquids such as raw sewage, trade waste, effluent and storm water



12 Months Warranty On chamber
24 months warranty on Pump * parts and
labour
