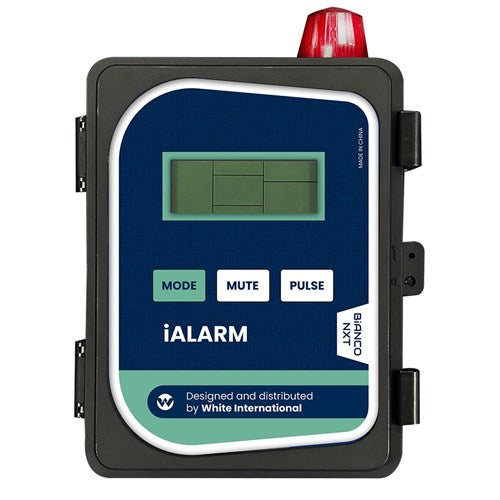

BIANCO NXT-LIQUID LEVEL ALARM

Save 6%

Price:
Sale price$430.00 Regular price$455.40

Description

BIANCO NXT-LIQUID LEVEL ALARM

811205

Specifications:

* Rated Voltage: 230v, 50Hz
* Single Phase
* Rated Operating Current: 1 Amp
* Power Cable Length: 1.5m
* Float Cable Length: 10m
* Float Circuit Voltage: 24v
* IP Rating: IP54
* Operating Temperature Range: -25-55 degrees
* Casing: UV rated plastics and LCD protection layer
* Dimensions: 345mm x 140mm x 305mm
* Weight: 1.85kg

Operation:

Installation:

* While the nXt alarm has an IP54 rating, additional protection against the weather is recommended.
* Using suitably rated cable, the float can be extended up to 50m length.
* The power flex and float cable should never be encased in metal piping/conduit
* The 10m cable is supplied with a counter weight. In situations where the float switch cable is not secured to a fixed object i.e the float is lowered freely into the tank, a counterweight is necessary to ensure correct operation by providing a pivot point for the float.
* Exercise care in positioning the float to ensure it cannot become snagged or otherwise rendered inoperable.

Note:

* The nXt Alarm is an alarm module only
* It does not and cannot operate a pump
* There is no ability to connect to any network or to trigger external devices including remote alarm units.

Two Year Back to Base Warranty
