DAB-VA55-130


Price:
Sale price$542.97

Description

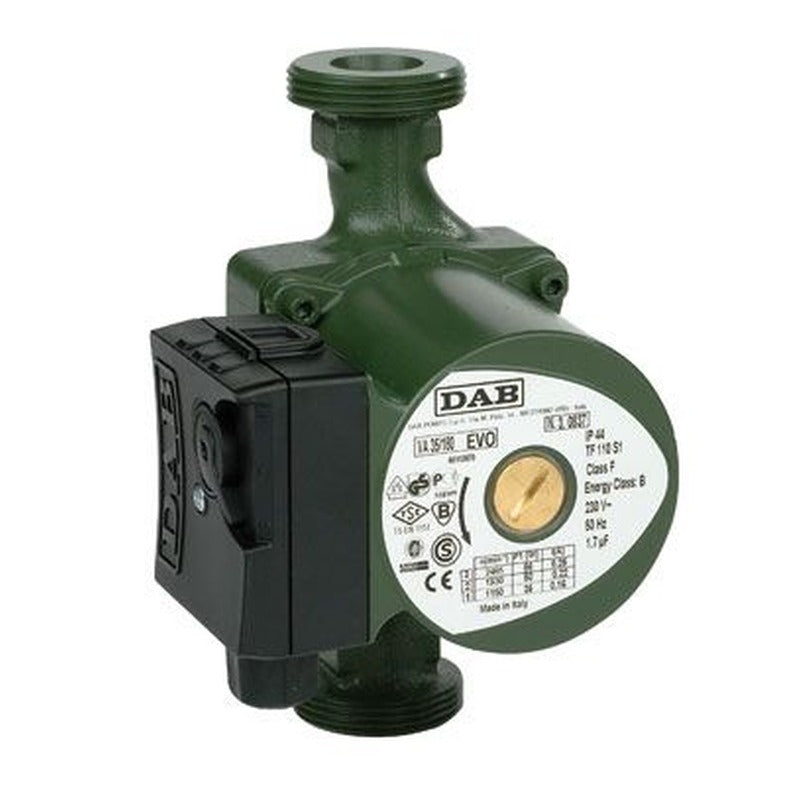

DAB VA55-130 - 3 Speed Pump

Suitable for circulating hot water in closed and pressurised or open tank centralised home heating and air conditioning systems. Also suitable for solar power systems.

Specifications:

* Power: 70 Watt
* Max Flow rate: 65 L/m
* 3900 Litres per hour
* Max delivery height: 5.4 metres
* Centre distance: 130mm
* Materials: Cast Iron
* Protection level: IP 44
* Insulating class: FCable grommet: PG 11
* Standard voltage: single-phase 230 V / 50 Hz

Technical Features:

* Circulator with threaded ports, pump body in cast iron, motor shaft in stainless steel, graphite bushings, ceramic thrust bearing
* Motor self-protected for resistance (no power leads included)
* Resistant also in the case of dry running
* Operation at three speeds

Features:

* Rugged construction
* Pump safety
* Increased lifespan
* Flexible and silent-running
* Solid structure
* No need for overload protection
* Prevents damage
* Suitable for all system characteristics

Options Available:

This pump comes with one and a half inch ports (inlet and outlet). Unions are available to reduce the inlet and outlet in size to either 1 inch or 3/4 inch. Unions come in either cast iron or brass depending on your preference.

DAB GRUNDFOS KSB SALMSON WILO
 VA 25/130 1/2 UPS 15-30/130  RIO C 15-25/130 NYL 33-15 STAR-RS 15/2
 VA 25/130 UPS 25-30/130  RIO C 25-25/130 NYL 33-25 STAR-RS  25/2
 VA 35/130 1/2 UPS 15-40/130  RIO C 15-40/130 NYL 43-15 STAR-RS  15/4
 VA 35/130 UPS 25-40/130  RIO C 25-40/130 NYL 43-25 STAR-RS  25/4
 VA 55/130 1/2 UPS 15-50/130  RIO C 15-60/130 NYL 53-15 STAR-RS 15/6

 VA 55/130

UPS 25-50/130  RIO C 25-60/130 NYL 53-25

STAR-RS 25/6

GOLD RS 50

 VA 65/130 1/2 UPS 15-60/130   NYL 63-15 STAR-RS 15/6
 VA65/130 UPS 25-60/130   NYL 36-25

STAR-RS  26/6

GOLD RS 60

This product complies with EN 60335-2-51 European standard

2 Year Warranty
