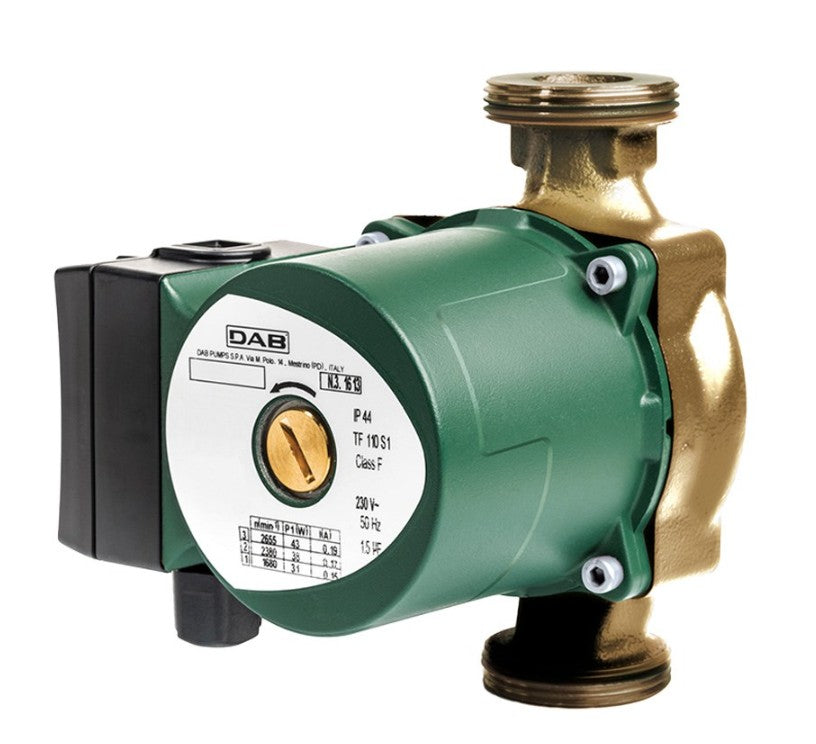

DAB-VS 65-150 - For Domestic Hot Water Systems


Price:
Sale price$950.48

Description

DAB-VS 65-150 - For Domestic Hot Water Systems

Pump for hot water circulation in domestic central heating and air conditioning systems of the closed circuit pressurized type or open circuit. Also suitable for solar power systems.

Specifications:

* 77watts
* Max Head: 6m
* Max flow: 60 L/m
* Single Speed
* Single-phase 230 V / 50 Hz
* Amps:0,34 (no power leads included)
* Port thread size: 1-1/2
* Max working pressure:10 Bar

Technical Features:

* Centre distance:150mm
* RPM:2317
* Energy efficiency class:C
* Liquid temperature range: from + -10°C to + 110°C
* Pumped liquid characteristics: clean, free from solids and mineral oils, non viscous, chemically neutral, close to the characteristics of water ( max 30% glycol)
* Installation: with motor axis horizontal.
* Protection level: IP 44
* Insulating class: F Cable grommet: PG 11
* Motor self-protected against resistance.No overload protection required

Material Design:

* Bronze hydraulic unit.
* Die cast aluminium motor casing and techno polymer impellor.
* Die-cast aluminium motor casing. Techno polymer impeller.
* Tempered stainless steel driving shaft mounted on graphite bearings lubricated by the pumped liquid.
* Stainless steel protective rotor sleeve, stator sleeve and closing flange.
* Ceramic thrust bearing, E.P.D.M. O-rings and brass air outlet cap.

Installation:

With MOTOR AXIS HORIZONTAL on the delivery or return piping, with intake mouth as near as possible to the expansion tank, higherthan the maximum level of the boiler and as far away as possible from bends, elbows and unions, in order to prevent water turbulence and consequent noisiness.

DAB GRUNDFOS KSB SALMSON WILO
 VA 25/130 1/2 UPS 15-30/130  RIO C 15-25/130 NYL 33-15 STAR-RS 15/2
 VA 25/130 UPS 25-30/130  RIO C 25-25/130 NYL 33-25 STAR-RS  25/2
 VA 35/130 1/2 UPS 15-40/130  RIO C 15-40/130 NYL 43-15 STAR-RS  15/4
 VA 35/130 UPS 25-40/130  RIO C 25-40/130 NYL 43-25 STAR-RS  25/4
 VA 55/130 1/2 UPS 15-50/130  RIO C 15-60/130 NYL 53-15 STAR-RS 15/6

 VA 55/130

UPS 25-50/130  RIO C 25-60/130 NYL 53-25

STAR-RS 25/6

GOLD RS 50

 VA 65/130 1/2 UPS 15-60/130   NYL 63-15 STAR-RS 15/6
 VA65/130 UPS 25-60/130   NYL 36-25

STAR-RS  26/6

GOLD RS 60

2 Year Warranty
