Description

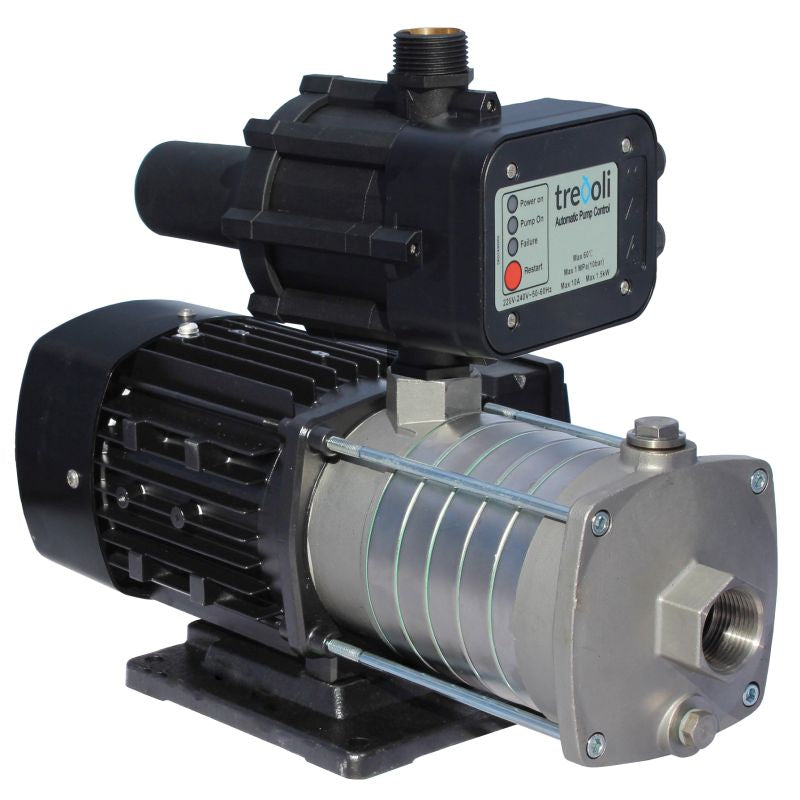

TREVOLI CM2-50E - Stainless Steel Multistage Water Pump
CM2-50E
This pump is ideal for domestic water supply, providing good mains pressure for a large single or multi-level home. Able to support up to 7 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow). Starts automatically when the tap is turned on and stops automatically when the last tap is turned off, operating constantly from low flow to full flow.
Recommendation: A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu.
A free three-way tee is provided with any pump and pressure tank combination.
Explanations of Controller Options
Specifications:
*Power -550W - .75 Horsepower
*Single phase with standard NZ 3 pin plug
*Max Flow rate 70 litres per minute
*Max Pressure:70 psi
*Max discharge head: 48 metres
*Inlet size and outlet size 1 inch BSP (same as 25mm)
*Built in thermal overload protection
*Insulation class F
*IP55 Protection
*Rated for Continuous duty
*Liquid temperature range: -15 - 70 deg C
*Max operating pressure: 10 bar
*Number of Impellers: 5
*Length: 380mm x Height: 210mm x Width: 143mm
*Max suction 1.5m
Common Applications:
*Domestic Household Pumps
*Water supply for large / very large homes
*General water transfer systems
*Industrial/commercial applications
Features:
* Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow)
* Starts automatically when the tap is turned on (and pressure drops to 2.2 bar)
* Operates constantly from low flow to full flow
* Stops automatically when the last tap is turned off
* Run Dry Protection
* Corrosion resistant stainless steel construction
* Stainless steel pump housing
* Stainless steel motor shaft
* Stainless steel impeller and intermediate chambers
* Built in thermal overload protection
* Very quiet operation
Performance
This is a Household Pump. Medium/high pressure Pump - up to 70 PSI, supports up to 7 taps operating at one time. (Based on 10 L/m).
At 30m Head flow rate = 60 litres per minute
2 Year back to base warranty
