DAB ESYBOX POP VARIABLE SPEED PRESSURE PUMP SYSTEM

Please contact us regarding this product, as we don't always carry this item in stock.

DAB-ESYBOXPOP
(813689)

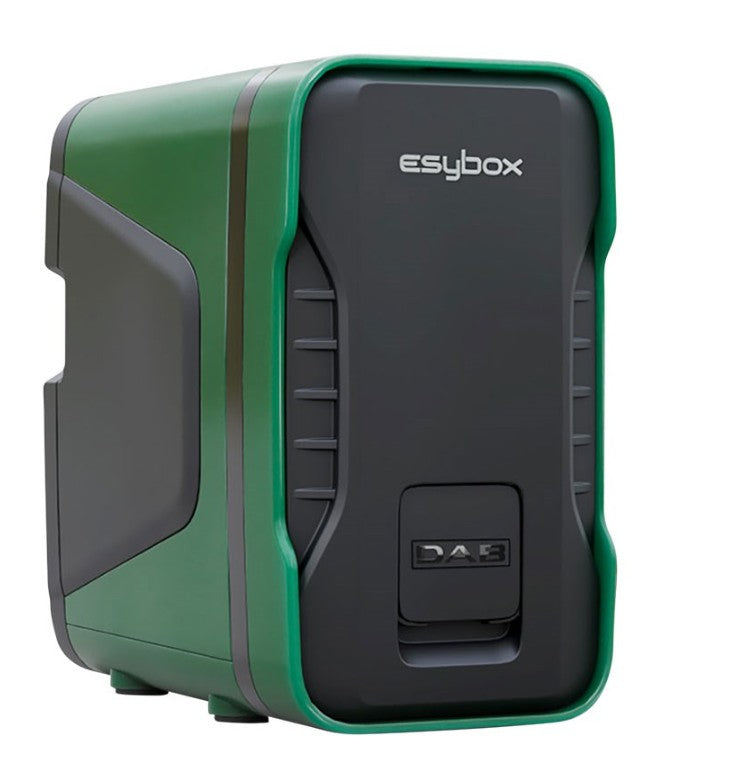

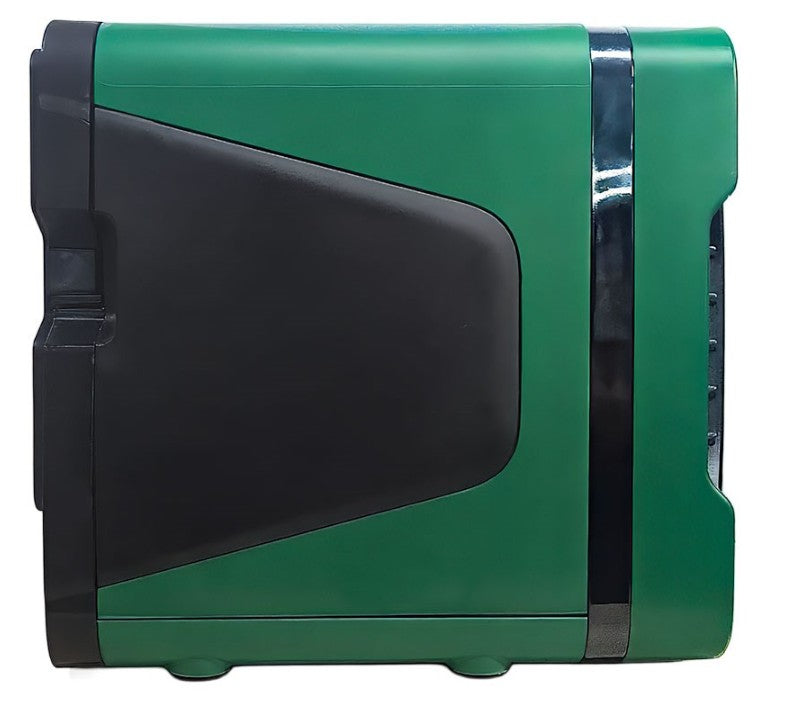

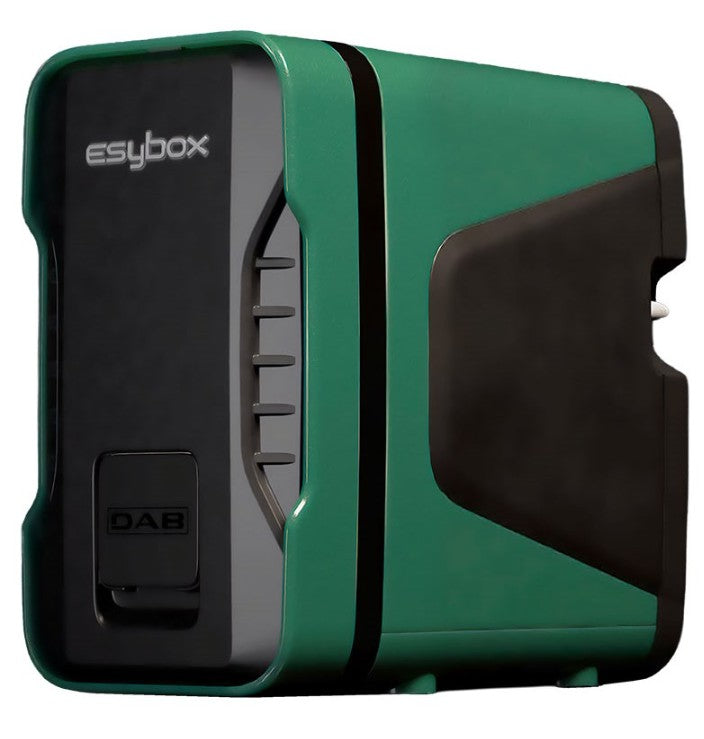

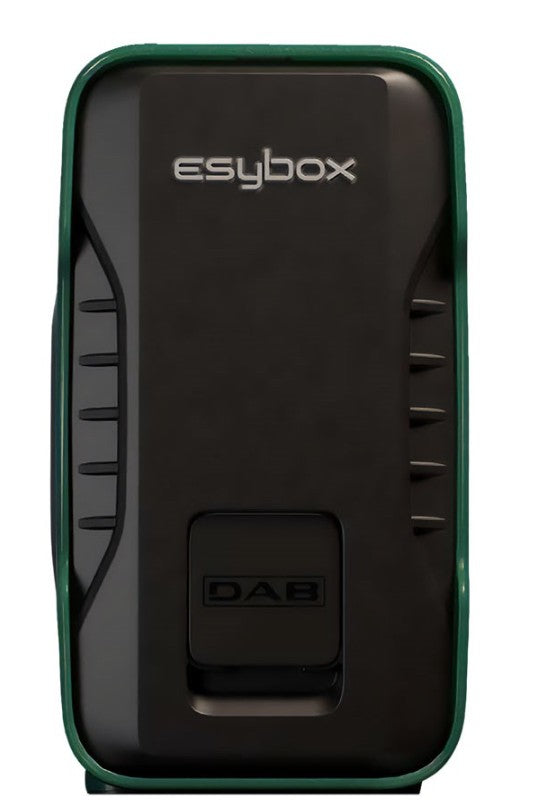

The DAB ESYBOX POP is a compact, electronically controlled variable speed pressure system designed for small residential applications, such as supplying a single tap. It provides quiet, efficient operation with intelligent variable speed control to maintain consistent water pressure.

Featuring built-in dry-run protection, anti-cycling leak detection, anti-freeze protection, and motor protection, the ESYBOX POP is designed for reliable, long-lasting performance. Adjustable connections simplify installation, while integrated wireless connectivity allows users to monitor and configure the system from a smartphone without the need for additional accessories.

Please note that the DAB ESYBOX POP is not self-priming.

Specifications:

* Power: 0.3kW
* Horsepower: 0.4hp
* Voltage: 230V
* Max Head: 32m
* Max Flow: 65L/m
* Inlet/Outlet: 20mm/3/4"
* Quiet operation - 45 dB in standard use
* Max Pressure: 6.1 bar/88 PSI

Features:

* Sound-absorbing ABS protective casings
* Non-return valve with integrated temperature, flow and pressure sensors
* Water-cooled permanent magnet motor, ensuring quiet operation making it
   particularly suitable for home use.

Technical features:

* Maximum System Pressure: 7.5 bar (750 kPa)
* Maximum Operating Pressure: 6 Bar (600 kPa)
* Liquid Temperature: 0º to +50º C
* Maximum Ambient Temperature: 50º C
* Protection Level: IP X5
* Insulation Class: F
* Materials:
  Composite outer casing
  Stainless steel shaft
  Technopolymer impeller and diffusers

Applications:

* Granny flats & Tiny Housing
* Residential bathroom extensions
* Areas in the home affected by water rationing
* Single taps with low pressure
* Backyard toilets
* Garden Hose

Additional Documentation:

Data Sheet 1
Data Sheet 2
Data Sheet 3
Operations Manual
Certification

TWO-YEAR WARRANTY BACK TO BASE
