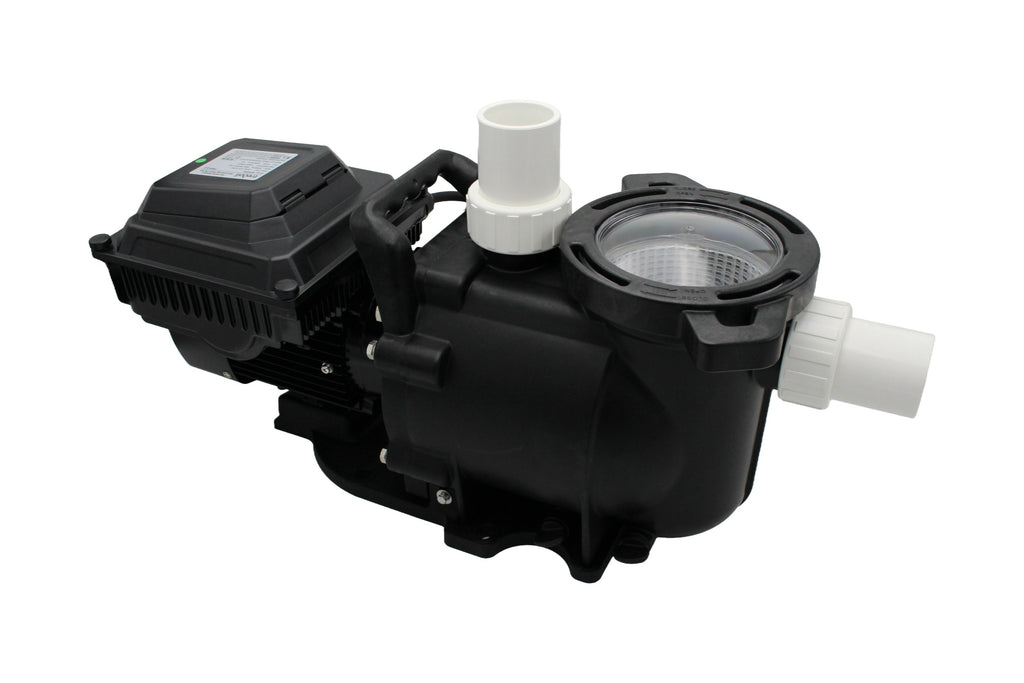

SPV200 Variable Speed Pool Pump

Energy Efficient Pump

The SPV200 Variable Speed Pump operates at a constant speed but offers the flexibility to be adjusted to different RPMs, providing pool and spa owners with various usage options. This technology carries multiple benefits including customisable performance, quieter operation and reduced wear on parts.

Implementing the ability to adjust RPMs at different intervals offers the advantage of optimising power consumption. By strategically setting RPMs based on specific needs or usage patterns, it becomes possible to effectively manage energy usage and uphold long-term cost savings.

Suitable for pools 20,000 to 90,000 Litres.

Specifications:

Model	kW	HP	Inlet	Outlet	Voltage	Phase	Hz
SPV200	1.65	2.2	40mm/50mm	40mm/50mm	230	1	50/60

Pumping Head (m)	Flow (lpm)
23	0
12	380
4	500

Features:

* Easy to set controller
* Multiple pre-set RPM modes
* Adjustable RPM modes
* IP55 Protection
* Insulation Class F
* Suction lift of 6m
* Quiet Operation when running in low RPM mode
* Includes 50mm transition joint unions
* Stainless Steel rings on discharge and intake to minimise thread issues

Constant VSD:

* One touch controller
* Pre-set and adjustable speed programs
* Pre-set schedules
* Creates power efficient pool, spa or water feature

Applications:

* Swimming Pools sized 20,000 to 90,000 Litres
* Spa Pools
* Water features

Dimensions:

Length- 572mm
Height- 274mm
Width- 264mm
weight: 18kg

Two Year Warranty
